{"__v":6,"_id":"5e19fdcdc289a44478e792da","description":"Pendant light - coming soon!!","gui":[{"id":"baseWidth","label":"base width","max":60,"min":30,"step":1,"toolTip":"max width","type":"range","unit":"cm","val":30},{"id":"height","label":"height","max":"30","min":"8","step":"1","toolTip":"Increase height of lamp","type":"range","unit":"cm","val":30},{"id":"topControl","label":"top control","max":20,"min":0,"step":0.1,"toolTip":"Adjust shape of lamp at the top","type":"range","val":0},{"id":"bottomControl","label":"bottom control","max":"10","min":"-10","step":"0.1","toolTip":"Adjust shape of lamp at the bottom","type":"range","val":10},{"id":"verticalRibs","label":"vertical ribs","max":"30","min":"8","step":"1","toolTip":"number of vertical ribs","type":"range","val":30},{"id":"segments","label":"segments","options":["1","2","3","4","5","smooth"],"toolTip":"select smooth or segmented profile","type":"selectDropDown","val":"smooth"},{"id":"material","label":"material","options":["pine","mahogany"],"type":"selectDropDown","val":"pine"}],"guiValidate":["if ((gui.topControl<2)&&(gui.baseWidth<24)&&(gui.bottomControl>7))","{","messageString += 'Too narrow
Resolve by increasing base width or increasing top control or decreasing bottom control
';","selectionWarning = true;","}"],"imagePath":"/configurators/pendantlight/sincpendant.jpg","leadFormula":["var leadString = 2 + Math.floor(procureQty/10);","return leadString;"],"model3d":{"build":["controls.maxDistance=100;","removeFrameElements();","drawPendantFrame();","drawSupport(0.001)","drawSupport(0.99)","placePendantLamp();"],"init":["camera = new THREE.PerspectiveCamera(50, window.innerWidth / window.innerHeight, 1, 10000);","camera.position.set(0, -10, 80);","scene.add(camera);","drawPendantFrame();","pendantLamp = buildPendantLamp();","scene.add(pendantLamp.group);","placePendantLamp();","var ambientLight = new THREE.AmbientLight(0xFFFFFF, 0.3);","","scene.add(ambientLight);","var light = new THREE.PointLight(0xffffff,3,0,0);","light.position.set(100, 300, 200);","scene.add(light);","const sphereMaterial = new THREE.MeshBasicMaterial();","sphereMaterial.map = loadColorTexture('/configurators/pendantlight/holidayhome.jpg');","const sphereGeometry = new THREE.SphereGeometry(800, 60, 40);","sphereGeometry.scale( - 1, 1, 1 );","const sphere = new THREE.Mesh(sphereGeometry, sphereMaterial);","scene.add(sphere);","controls= new OrbitControls(camera,renderer.domElement);"],"scripts":["OrbitControls"],"setup":["var frameSolid, numberOfVerticals, offsetRadius=2, woodThickness=0.4, lastTextureSelected=0, material, segments, curvePoints;","var curveWidth;","var pendantLamp = null;"],"userFunctions":["function drawPendantFrame() {","numberOfVerticals=gui.verticalRibs;curveWidth = gui.baseWidth/2 - offsetRadius;","var profileShape1 = new THREE.Shape();","profileShape1.moveTo(-0.4, woodThickness/2);","profileShape1.lineTo(0.4, woodThickness/2);","profileShape1.lineTo(0.4, -woodThickness/2);","profileShape1.lineTo(-0.4, -woodThickness/2);","profileShape1.lineTo(-0.4, woodThickness/2);",""," if (lastTextureSelected != gui.material) {"," switch (gui.material) {"," case \"mahogany\":"," var texture = loadColorTexture( '/configurators/configceiling/mahogany.jpg' );"," material = new THREE.MeshLambertMaterial({ map: texture } );"," break;"," case \"pine\":"," var texture = loadColorTexture( '/configurators/configceiling/pine.jpg' );"," material = new THREE.MeshLambertMaterial({ map: texture } );"," break;"," default:"," var texture = loadColorTexture( '/configurators/configceiling/pine.jpg' );"," material = new THREE.MeshLambertMaterial({ map: texture } );"," }"," }"," lastTextureSelected = gui.material;","var curve1 = new THREE.CubicBezierCurve(","new THREE.Vector2( -curveWidth, 0 ),","new THREE.Vector2(-(curveWidth) + gui.bottomControl, 0 ),","new THREE.Vector2( -gui.topControl, gui.height ),","new THREE.Vector2( 0, gui.height )",");","segments = 50;","if (!isNaN(gui.segments)) {segments=gui.segments}","curvePoints = curve1.getPoints( segments );","var geometry = new THREE.BufferGeometry ().setFromPoints(curvePoints);","var geometry1 = Extruder(profileShape1, curvePoints, false,false);","var verticalsNumber = 0;","while (verticalsNumber < numberOfVerticals){","frameSolid = new THREE.Mesh(geometry1, material)","frameSolid.rotation.y = (verticalsNumber * 2 * Math.PI / numberOfVerticals);","frameSolid.name = \"frameSolid\"+verticalsNumber;","scene.add(frameSolid);","frameSolid.position.set(-offsetRadius*Math.cos(verticalsNumber*2*Math.PI/numberOfVerticals),0,offsetRadius*Math.sin(verticalsNumber*2*Math.PI/numberOfVerticals));","verticalsNumber++;","}","}","function removeFrameElements() {","var allChildren = scene.children;","var childCount = allChildren.length;","var arrayPosition = 0;","allChildren = scene.children;","while (childCount--) {","if (allChildren[childCount].name.includes(\"frame\")) {","scene.remove(allChildren[childCount]);","}","}","}","function drawSupport(relativeHeight) {","var counter = 0;","var ring1_y = relativeHeight* gui.height;","while(counter < segments) {","if ((curvePoints[counter].y < ring1_y) && (ring1_y < curvePoints[counter+1].y)) {","var slope = (curvePoints[counter+1].y - curvePoints[counter].y)/(curvePoints[counter+1].x - curvePoints[counter].x);","var intercept = curvePoints[counter].y - (slope * curvePoints[counter].x)","var ring1_x = Math.abs((ring1_y - intercept)/slope)","ring1_x += offsetRadius;","var arcShape = new THREE.Shape();","arcShape.absarc( 0, 0, ring1_x, 0, Math.PI*2, false );","var holePath = new THREE.Path();","holePath.absarc( 0, 0, ring1_x-woodThickness/2, 0, Math.PI*2, true );","arcShape.holes.push( holePath );","var extrudeRing = new THREE.ExtrudeGeometry(arcShape, {depth: woodThickness, bevelEnabled: false});","var mesh = new THREE.Mesh( extrudeRing, material );","mesh.name = \"frameRing1\"","mesh.rotation.x=(Math.PI/2);","mesh.position.y=ring1_y + 0.1","scene.add( mesh );","}","counter++","}","}","// Cable, holder, globe and bulb light. Built once from init; build only","// moves it, so a slider tick creates nothing new.","function buildPendantLamp() {","var group = new THREE.Group();","group.name = 'pendantLamp';","// Black textile flex, 20 cm up from the crown of the shade.","var cable = new THREE.Mesh(new THREE.CylinderGeometry(0.22, 0.22, 20, 12), new THREE.MeshStandardMaterial({ color: 0x161616, roughness: 0.9 }));","cable.position.y = 10;","group.add(cable);","// Everything below scales with the drop.","var fitting = new THREE.Group();","group.add(fitting);","// Holder through the crown ring: cord grip, body, collar.","var holderMaterial = new THREE.MeshStandardMaterial({ color: 0x222222, roughness: 0.5, metalness: 0.25 });","var holderParts = [[0.45, 0.6, 0.7, 0.95], [1.15, 1.15, 3.0, -0.9], [1.25, 1.25, 0.35, -2.5]];","for (var i = 0; i < holderParts.length; i++) {","var p = holderParts[i];","var part = new THREE.Mesh(new THREE.CylinderGeometry(p[0], p[1], p[2], 32), holderMaterial);","part.position.y = p[3];","fitting.add(part);","}","// Opal globe: a sphere drawn into a neck that meets the collar.","var globeRadius = 2.6, neckTop = -2.6;","var globeCentre = neckTop - 1.3 - globeRadius * Math.sin(Math.PI * 0.3);","var profile = [];","for (var j = 0; j <= 24; j++) {","var a = -Math.PI / 2 + (j / 24) * (Math.PI * 0.8);","profile.push(new THREE.Vector2(globeRadius * Math.cos(a), globeCentre + globeRadius * Math.sin(a)));","}","var shoulder = profile[profile.length - 1];","var neck = new THREE.QuadraticBezierCurve(shoulder, new THREE.Vector2(0.95, shoulder.y + 0.5), new THREE.Vector2(0.95, neckTop));","profile.push.apply(profile, neck.getPoints(8).slice(1));","profile.push(new THREE.Vector2(0, neckTop));","var globe = new THREE.Mesh(new THREE.LatheGeometry(profile, 48), new THREE.MeshStandardMaterial({ color: 0xfff6e8, emissive: 0xffe2b0, emissiveIntensity: 1.1, roughness: 0.35 }));","fitting.add(globe);","// Soft glow round the glass, so it reads as lit.","var glowCanvas = document.createElement('canvas');","glowCanvas.width = glowCanvas.height = 128;","var g2d = glowCanvas.getContext('2d');","var gradient = g2d.createRadialGradient(64, 64, 0, 64, 64, 64);","gradient.addColorStop(0, 'rgba(255, 236, 200, 0.7)');","gradient.addColorStop(0.35, 'rgba(255, 220, 160, 0.22)');","gradient.addColorStop(1, 'rgba(255, 210, 140, 0)');","g2d.fillStyle = gradient;","g2d.fillRect(0, 0, 128, 128);","var glowTexture = new THREE.CanvasTexture(glowCanvas);","glowTexture.colorSpace = THREE.SRGBColorSpace;","var glow = new THREE.Sprite(new THREE.SpriteMaterial({ map: glowTexture, blending: THREE.AdditiveBlending, depthWrite: false, transparent: true }));","glow.scale.setScalar(globeRadius * 6);","glow.position.y = globeCentre;","fitting.add(glow);","// Same strength, reach and decay as the old bulb, a little warmer.","var bulbLight = new THREE.PointLight(0xfff0dc, 2, 50, 0);","bulbLight.position.y = globeCentre;","fitting.add(bulbLight);","return { group: group, fitting: fitting };","}","function placePendantLamp() {","if (!pendantLamp) return;","pendantLamp.group.position.y = gui.height;","pendantLamp.fitting.scale.setScalar(THREE.MathUtils.clamp(gui.height / 20, 0.6, 1));","}"],"version":"1"},"priceFormula":["var calcPrice = 650;","calcPrice += (gui.verticalRibs*gui.baseWidth*gui.height/20);","return calcPrice;"],"rating":{"average":4.2,"count":13,"distribution":{"1":0,"2":0,"3":3,"4":4,"5":6},"samples":13},"tags":["frontPage","light"],"title":"Pendant Light"}

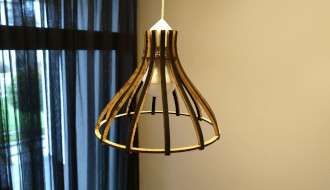

Pendant Light

Reviews
